The Stroop Effect

Teaching students

✓

Suitable

Teaching educators

✓

Suitable

Ask someone if they have ever been frustrated using a computer, and you'll probably be given many examples. Often this is because computer interfaces have been badly designed, and don't take account of how people think and interact with computers. This exercise turns things around, and uses a deliberately bad design to see how much people are slowed down when given clear but hard-to-process instructions. It's a lot of fun when you're deliberately tricking people, but it sheds light on how important it is that computer interfaces are created so that the user feels the computer is helping, and not hindering them.

Facilitator preparation

Read through the guide on how to deliver CS Unplugged at a distance content.
Go through the slides and trial them with the video conference software that you are going to present with.
If you aren’t familiar with this unplugged activity, review the in-person version in Section 9.1 of the EdX MOOC: Teaching Computational Thinking.
Create your coloured word list in your participants’ first language (if you use English and it’s not their first language, it can be easier to say the colours, and the point is to make it confusing!)

Supporting Resources

Open slides in presentation mode

Download speaker notes as PDF

Download slides as PDF

(not recommended - no interactive elements)

Preview slides with notes

We recommend previewing these slides on a larger screen to view the slides and speaker notes easily.

The Stroop Effect

Key questions

Have you ever used an application and had to think carefully about what to click?
Do software designers use psychology concepts when designing their applications?

Have you ever used an application, or website, and had to think carefully about what to click? Share in the chat if you can think of an example when you had to think carefully about what to click.

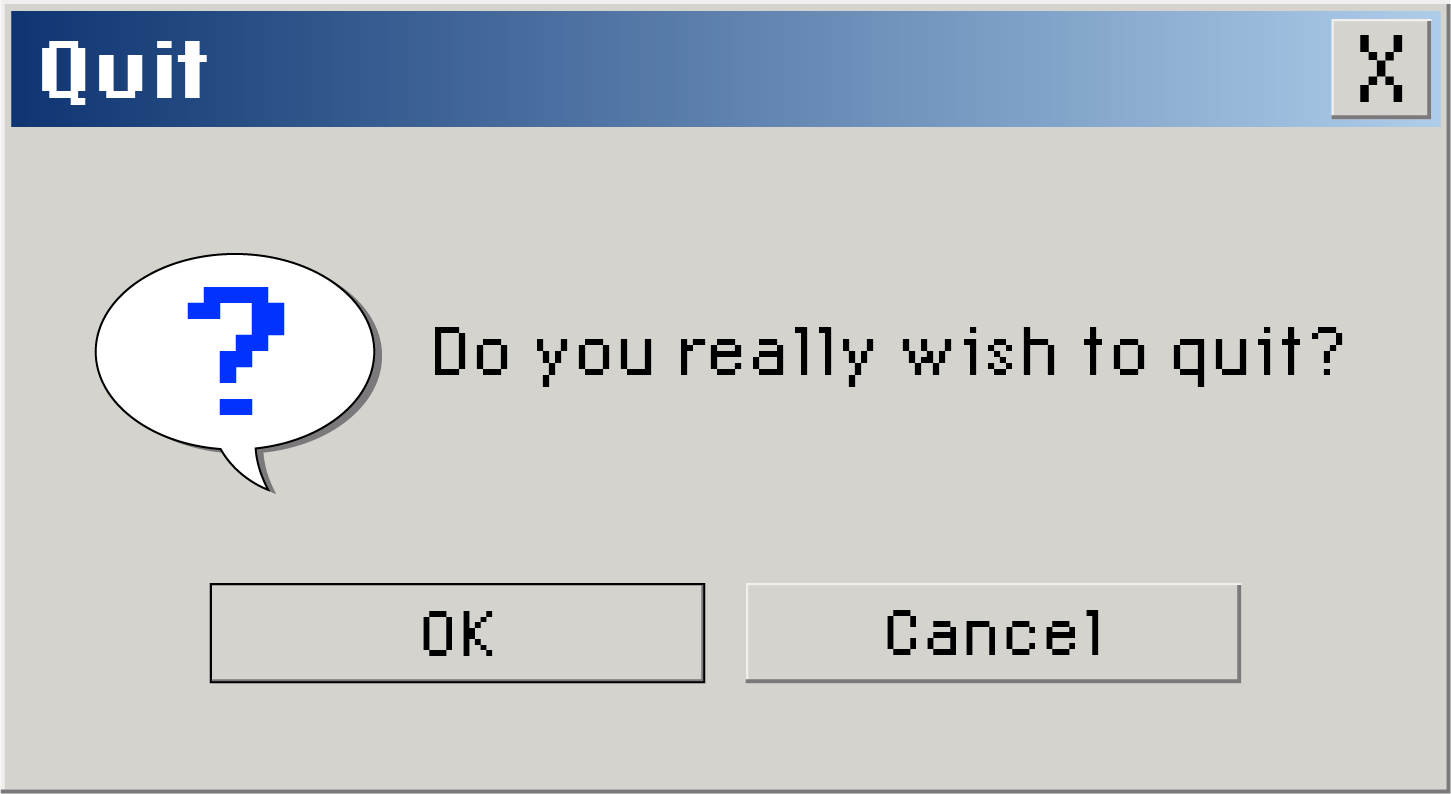

Wait until a couple of suitable comments have been made in the chat and comment appropriately on them. As a prompt about thinking carefully, you might ask if they've had a dialogue box that says “yes”, “no” and “cancel”, and they've had to think hard about whether they want “no” or “cancel”; or if they've been in a situation where they were worried pressing the wrong button will cause major problems. For thinking about whether software designers use psychology, they might think about whether some apps/software seems very easy to use, and others are very confusing. Is this by accident, or has some thought gone into them?

We are going to go through the next few slides quickly. As each one comes up, say the colour you see and not the word. You will be kept on mute, so you can say it to yourself. Here we go...

RED

GREEN

BLUE

BLACK

RED

PURPLE

Incongruent

0 seconds

Colour

Now we've had the warm up, let's try timing this activity. I have two lists and we will time how long it takes to read each of them.

These next two activities are the same as our practice round, but with all the words on one page. Say the colour the word is printed in, rather than the word. The slide will look like this, which shows a timer. When you have read all of the words out loud, look at the timer at the bottom and note what time it is on when you finish. Are you ready? Here's the list for you to read. Starting in 5, 4, 3, 2, 1...

Move to the next slide and say “Go!”.

Incongruent

0 seconds

Yellow

Green

Purple

Red

Black

Blue

Purple

Blue

Green

Go!

Wait about 10 seconds while participants read the colours to themselves.

Now type how long it took into the chat. It's not a test of how clever you are - it's more a test of how silly the exercise is!

Wait until a large majority at least have entered a time in the chat.

From the chat it looks like you've all had a go. The range of times seems to be [estimate the time range], so let's make the average time for this to be [say a time that would be close to the average; it will typically be around 10 to 14 seconds, and your estimate doesn't have to be very accurate].

Record the average time you have stated.

Congruent

0 seconds

Colour

Congruent

0 seconds

Red

Purple

Green

Red

Yellow

Green

Black

Blue

Red

Results

Incongruent

Yellow

Green

Purple

Red

Black

Blue

Purple

Blue

Green

Congruent

Red

Purple

Green

Red

Yellow

Green

Black

Blue

Red

Let's compare the times; what do you notice? What would be the ratio? [Typically the congruent list is 2 to 3 times faster to read.]

Share in the chat if you've felt like this using a digital system, where the interface (what it has displayed to you) is confusing to use.

Has a bad interface ever slowed you down or made you feel frustrated or even anxious?

Watch participants for nodding or responses in chat.

I can see several people nodding and we've had a couple of responses in the chat. This activity is called the 'Stroop effect' and is a famous experiment from psychology named after John Ridley Stroop. The Stroop test measures the amount of time it takes to say the name of the printed colours in an incongruent (incompatible, non-matching) list and compares this time to saying the name of the print colour in a congruent (agreeing, matching) list. Stroop found that people were often 2 or 3 times slower trying to read incongruent information.

Let's see it how this applies to Human Computer Interaction.

HCI in action

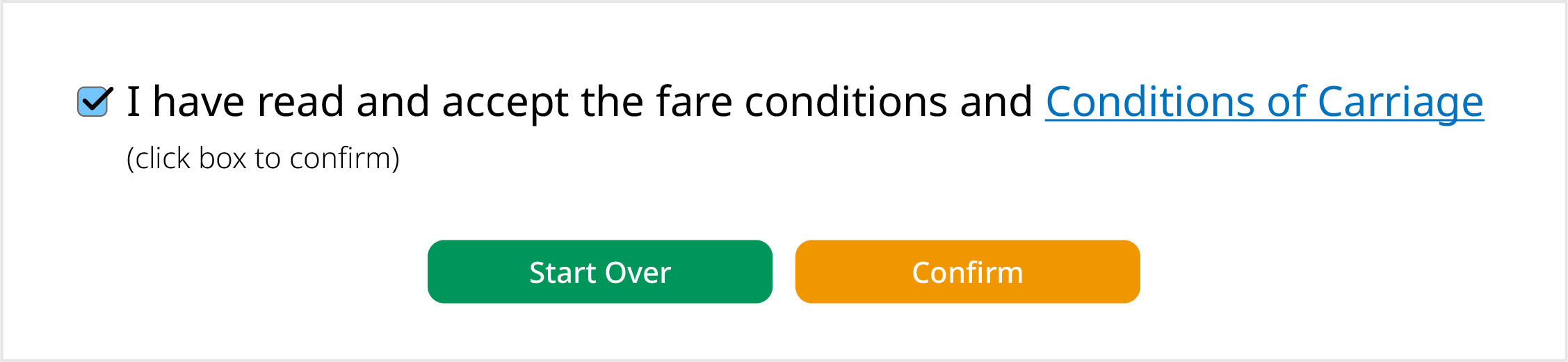

This screen is from an airline booking system; once you have entered all the details, it asks you to click on one of these options. Which option would you click on? Share your ideas in the chat.

What for a couple of responses and respond appropriately.

If people are in a hurry, they will naturally press the green button to continue (green means “go”, orange means “warning”), but that will wipe all the information they have entered.

In this example a lot of people pressed the wrong button and lost all their work. You could say that they didn't read it properly, but usually people are under pressure when they are using systems, and don't have time to carefully consider every step. If you expect them to do that, then it's like the Stroop effect. A good interface shouldn't make people have to think hard.

HCI in action

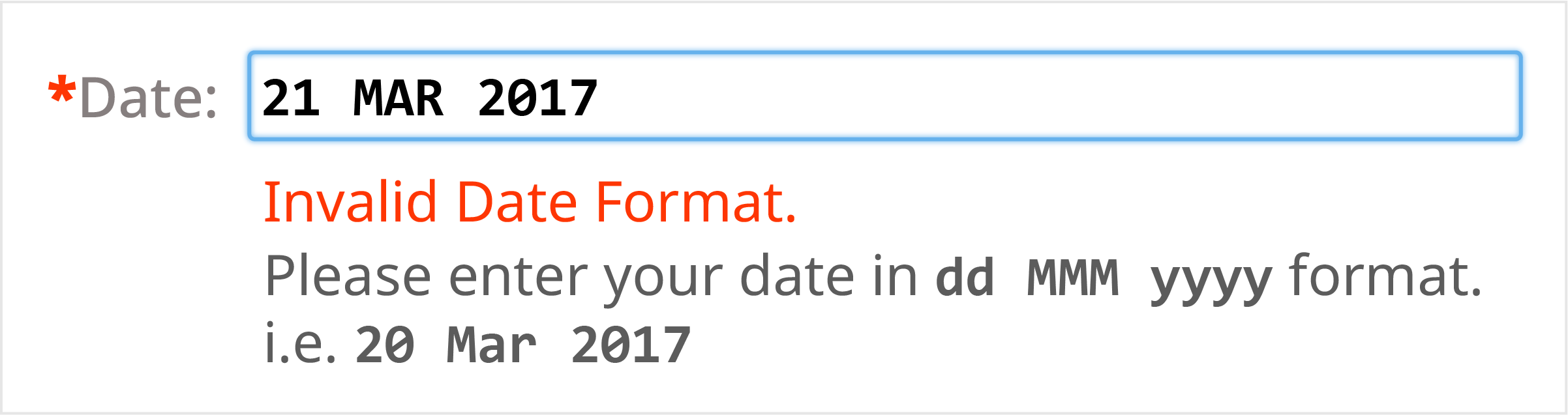

This is our last example. Why is this an invalid date format? What would you need to type to make it correct? Share your ideas in the chat.

Wait for some responses and respond appropriately.

Some of you have spotted it, the month is in capital letters (“MAR”) but it should be written as “Mar”. The format shows “MMM” which conflicts with the “Mar” example.

These are examples of just one type of problem in interfaces: confusing people with potentially contradictory messaging, even though they can work out what to do if they think about it. It only slows people down a little, but it can make them feel like you did when doing the Stroop experiment - frustrated and anxious - when they are trying to get their work done. Good interface designers anticipate and avoid these sorts of problems.

Key question

Do software designers use psychology concepts when designing their applications?

Software designers write programs for people, not for computers. We've shown in this session how important it is for them to consider and understand how their end users (people) will interact with the programs they create.

This kind of problem is just one of many ways that bad interfaces can make life difficult for computer users. There are many other ideas from psychology that are important in interface design, such as the length of delays in software before people notice (spoiler: usually anything longer than one tenth of a second is noticed), how inconsistent designs can be confusing, and many more. A lot of these things are fun when they are a game like the one we played, but can be very frustrating when they prevent someone from getting their job done.

Supporting Resources

Online Course (MOOC) - Teaching Computational Thinking (Section 9)
https://www.edx.org/course/teaching-computational-thinking
Computer Science Field Guide - Human Computer Interaction
https://www.csfieldguide.org.nz/en/chapters/human-computer-interaction/

Here are some supporting resources for you. I'll paste these links in the chat.

                            Online Course (MOOC) - Teaching Computational Thinking (Section 9)
                            https://www.edx.org/course/teaching-computational-thinking

                            Computer Science Field Guide - Human Computer Interaction
                            https://www.csfieldguide.org.nz/en/chapters/human-computer-interaction/
